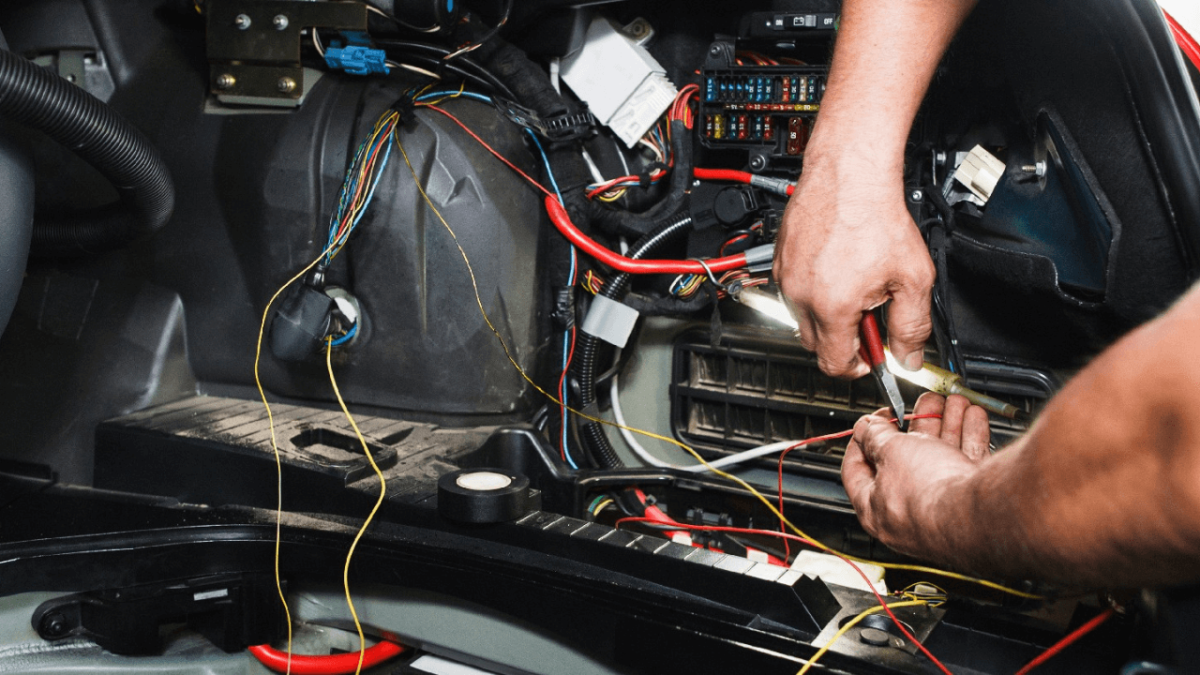

How to Wire a Car Stereo to a 12V Battery: A Step-by-Step Guide

How to Wire a Car Stereo to a 12V Battery
Rate this post

How to Run a Car Stereo Directly Off a Car Battery

Wiring a car stereo directly to a 12V battery can be a useful skill for various reasons. Whether you’re testing the stereo outside of the vehicle, setting up a portable audio system, or troubleshooting electrical issues, understanding this process can be extremely beneficial.

This guide will walk you through the necessary steps to wire a car stereo to a 12V battery safely and efficiently.

Tools and Materials Needed

Before diving into the wiring process, gather the following tools and materials:

  • Car Stereo: Ensure that it is functional and has a wiring harness.
  • 12V Battery: A standard car battery or a portable 12V battery.
  • Wire Strippers: To strip the insulation off the wires.
  • Electrical Tape: For securing connections.
  • Soldering Iron and Solder (optional): For a more secure connection.
  • Connectors: Spade connectors or crimp connectors.
  • Multimeter: To check the voltage and ensure proper connections.
  • Fused Power Cable: For safety, use a cable with an inline fuse.

Safety Precautions

  • Work in a Well-Ventilated Area: Batteries can emit gases.
  • Wear Safety Gear: Gloves and eye protection.
  • Disconnect Power When Not in Use: To prevent accidental shorts.
Also Read:  How To Link Aadhaar Card With Bank Account (Online & Offline)

Step-by-Step Guide: How to Wire a Car Stereo to a 12V Battery

How to Run a Car Stereo Directly Off a Car Battery

Step 1: Prepare the Battery

Ensure the 12V battery is fully charged and in good condition. Place the battery in a stable location to prevent it from tipping over. Identify the positive (+) and negative (-) terminals on the battery.

Step 2: Identify Stereo Wires

Examine the wiring harness of your car stereo. Typically, the wires are color-coded:

  • Yellow: Constant 12V (memory power)
  • Red: Accessory 12V (switched power)
  • Black: Ground
  • Blue/White: Remote turn-on (for amplifiers)
  • Orange: Illumination
  • Speaker Wires: Usually pairs of the same color with one having a stripe (e.g., white and white/black for front left speaker)

Consult the stereo’s manual for specific wiring information.

Step 3: Strip the Wires

Using wire strippers, remove about 1/2 inch of insulation from the ends of the power (yellow and red), ground (black), and any other necessary wires.

Step 4: Connect the Power Wires

For this step, it’s crucial to have a fused power cable to protect the stereo from power surges.

  1. Attach the Positive Wire: Connect the yellow wire from the stereo to the positive terminal of the battery. If using a fused cable, connect the fuse holder in line with this wire.
  2. Connect the Accessory Wire: Join the red wire from the stereo to the same positive terminal. This wire typically activates the stereo when the ignition is on.

Step 5: Ground the Stereo

  1. Identify the Ground Wire: Locate the black wire from the stereo.
  2. Attach to Negative Terminal: Secure the black wire to the negative terminal of the battery. This completes the circuit.
Also Read:  How to Block Someone on Your YouTube Channel

Step 6: Secure the Connections

To ensure the connections are stable and safe:

  1. Use Connectors: Attach spade or crimp connectors to the wire ends for a secure fit on the battery terminals.
  2. Solder (Optional): For a permanent connection, solder the wires to the connectors.
  3. Wrap with Electrical Tape: Cover all exposed connections with electrical tape to prevent short circuits.

Step 7: Test the Stereo

Once all connections are secure:

  1. Turn On the Stereo: Press the power button on the car stereo.
  2. Check Functionality: Test various functions such as radio, CD player, or Bluetooth connectivity to ensure everything works properly.

Step 8: Troubleshooting

If the stereo does not power on:

  1. Check Connections: Ensure all wires are properly connected and secure.
  2. Use a Multimeter: Verify that the battery provides 12V and that the power wires deliver the correct voltage to the stereo.
  3. Inspect the Fuse: If using a fused power cable, ensure the fuse is intact.

Additional Tips

How to Connect Car Radio at Home
  • Label Wires: If you’re working with multiple wires, labeling can help keep track of connections.
  • Battery Maintenance: Keep the battery terminals clean and free of corrosion.
  • Portable Setup: Consider using a battery box for a portable audio system to house the battery and stereo securely.

Conclusion

Wiring a car stereo to a 12V battery is a straightforward process if you follow these steps carefully. Whether for testing, troubleshooting, or creating a portable audio setup, this skill can be quite handy.

Always prioritize safety by working in a well-ventilated area and using proper protective gear. With the right tools and precautions, you can successfully wire your car stereo to a 12V battery and enjoy your music anywhere you go.
